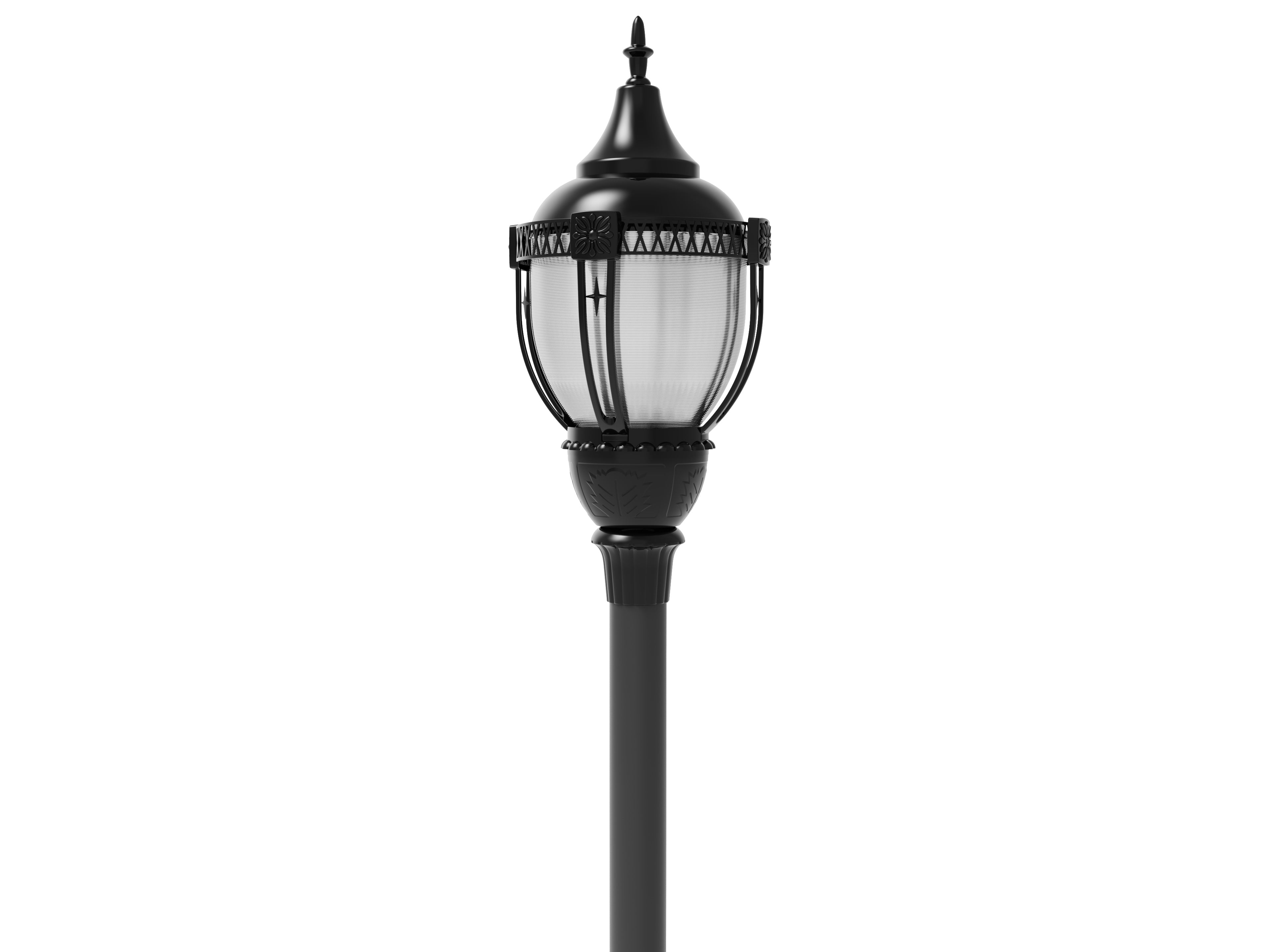

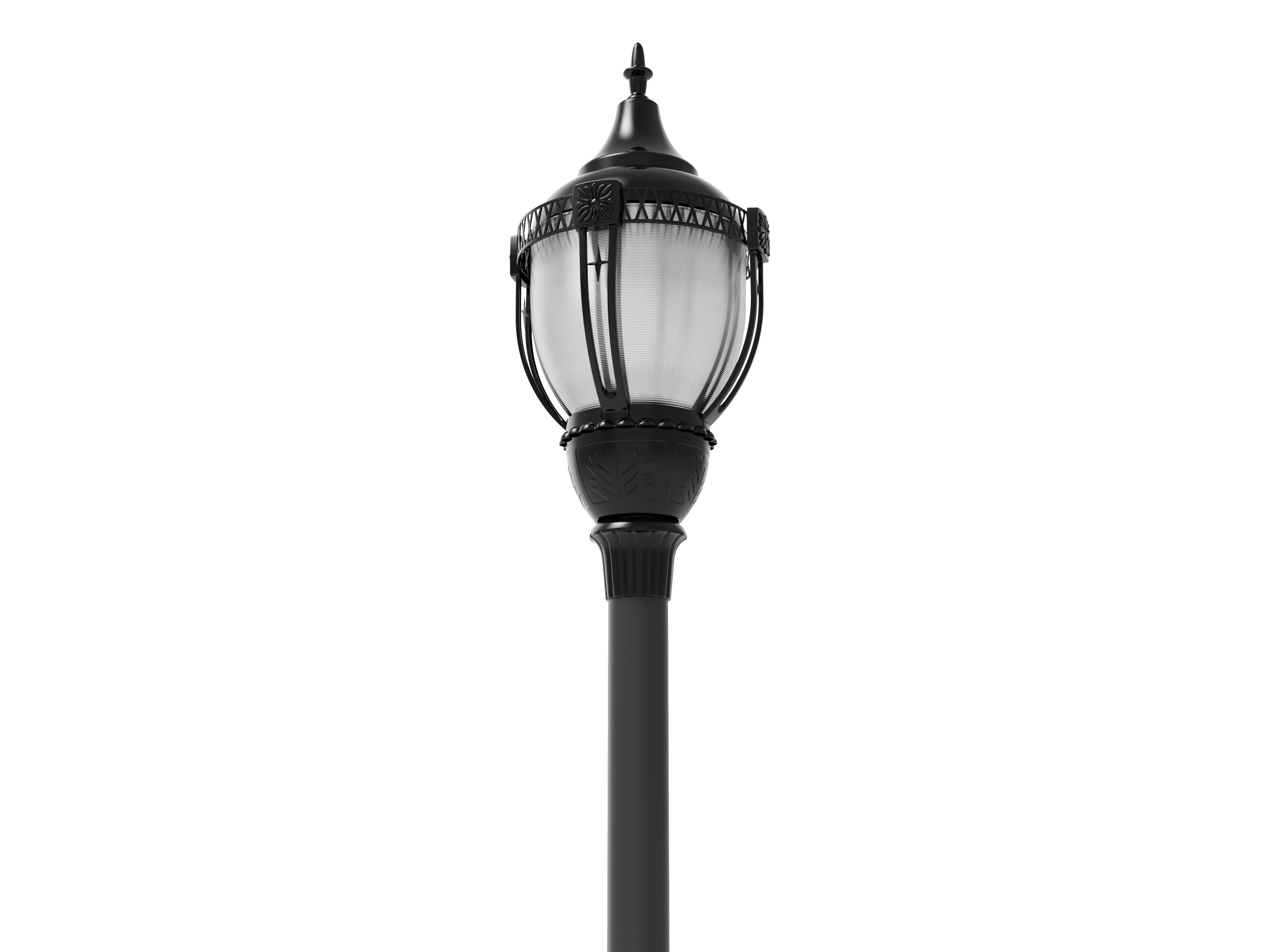

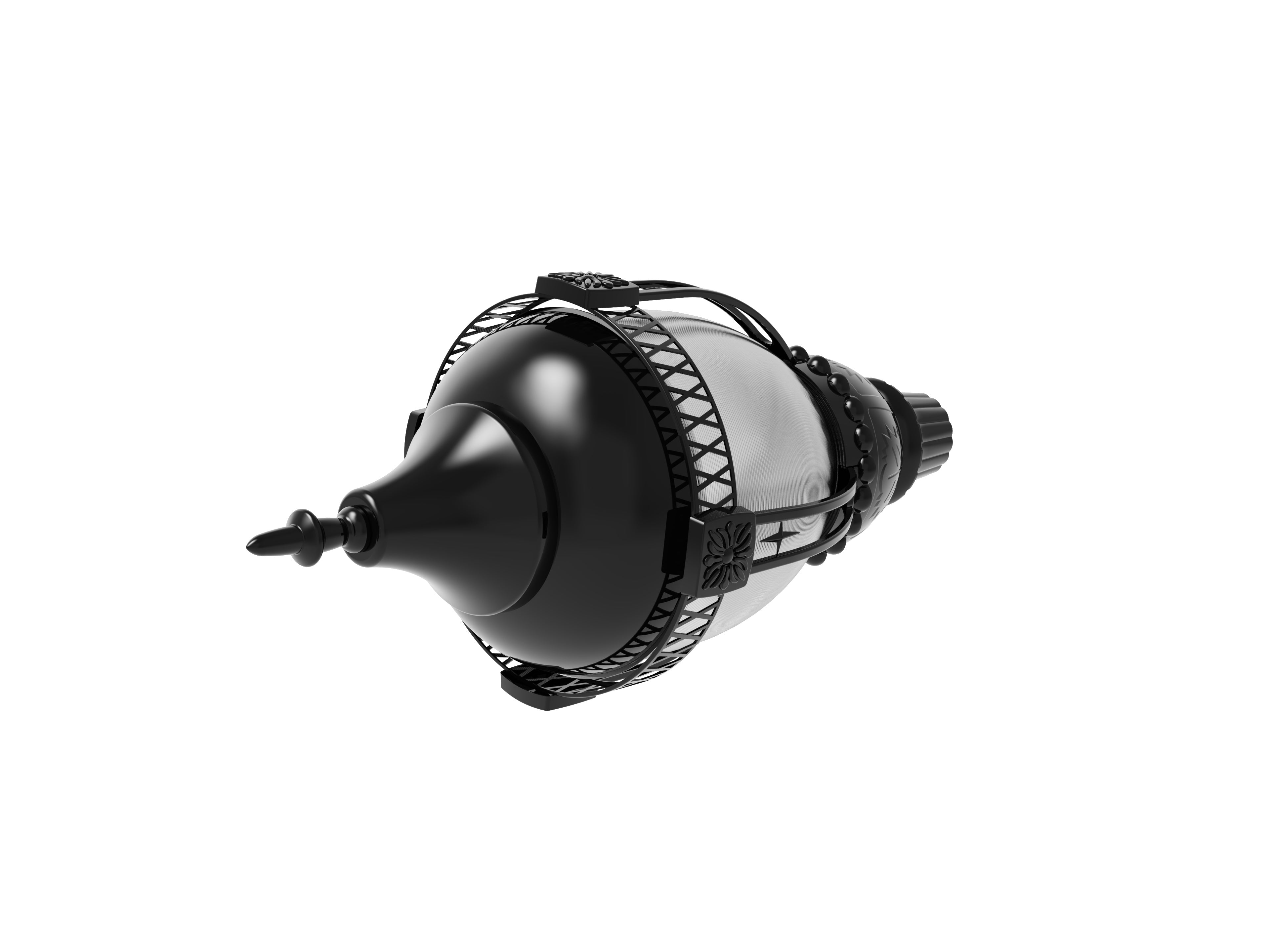

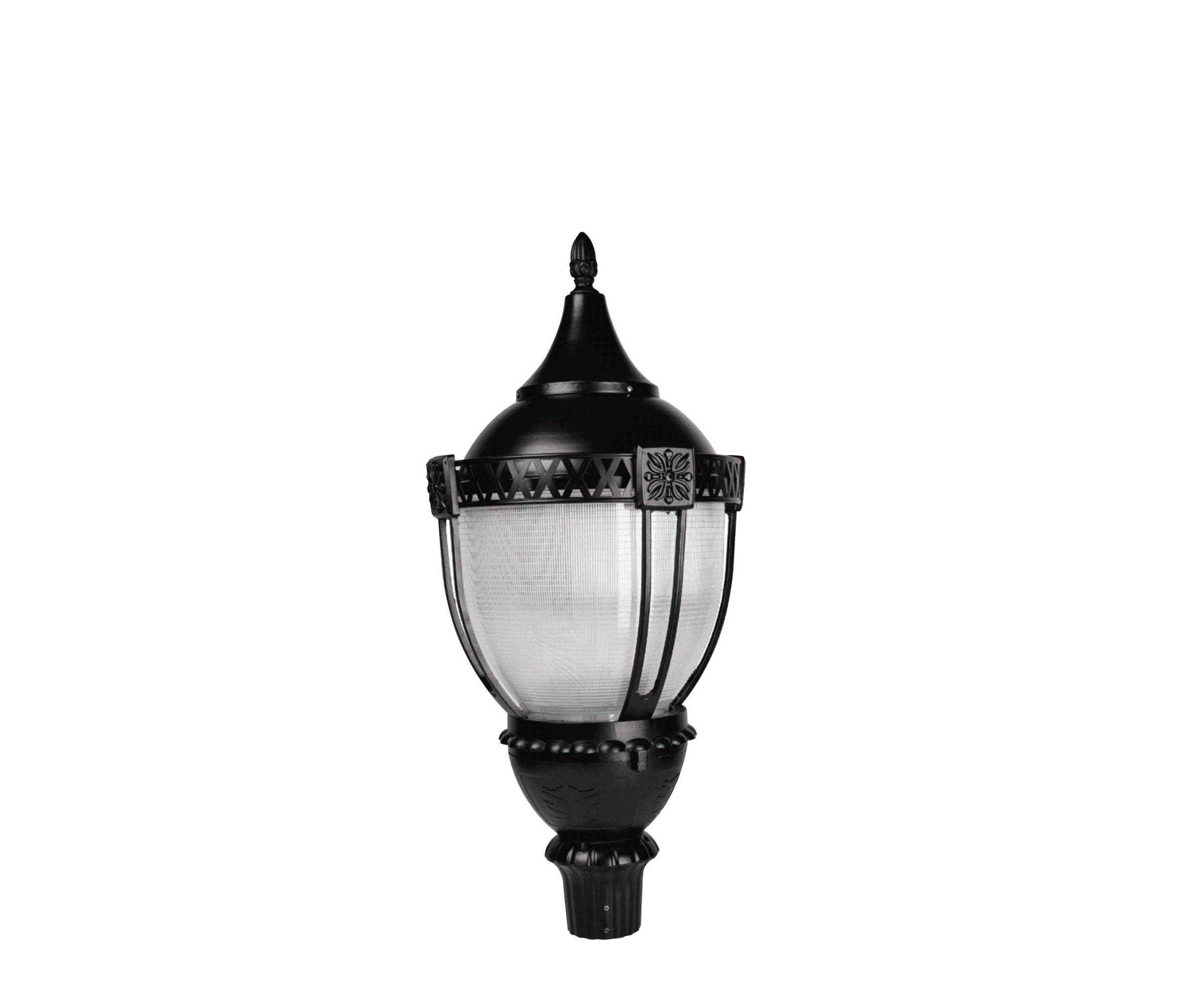

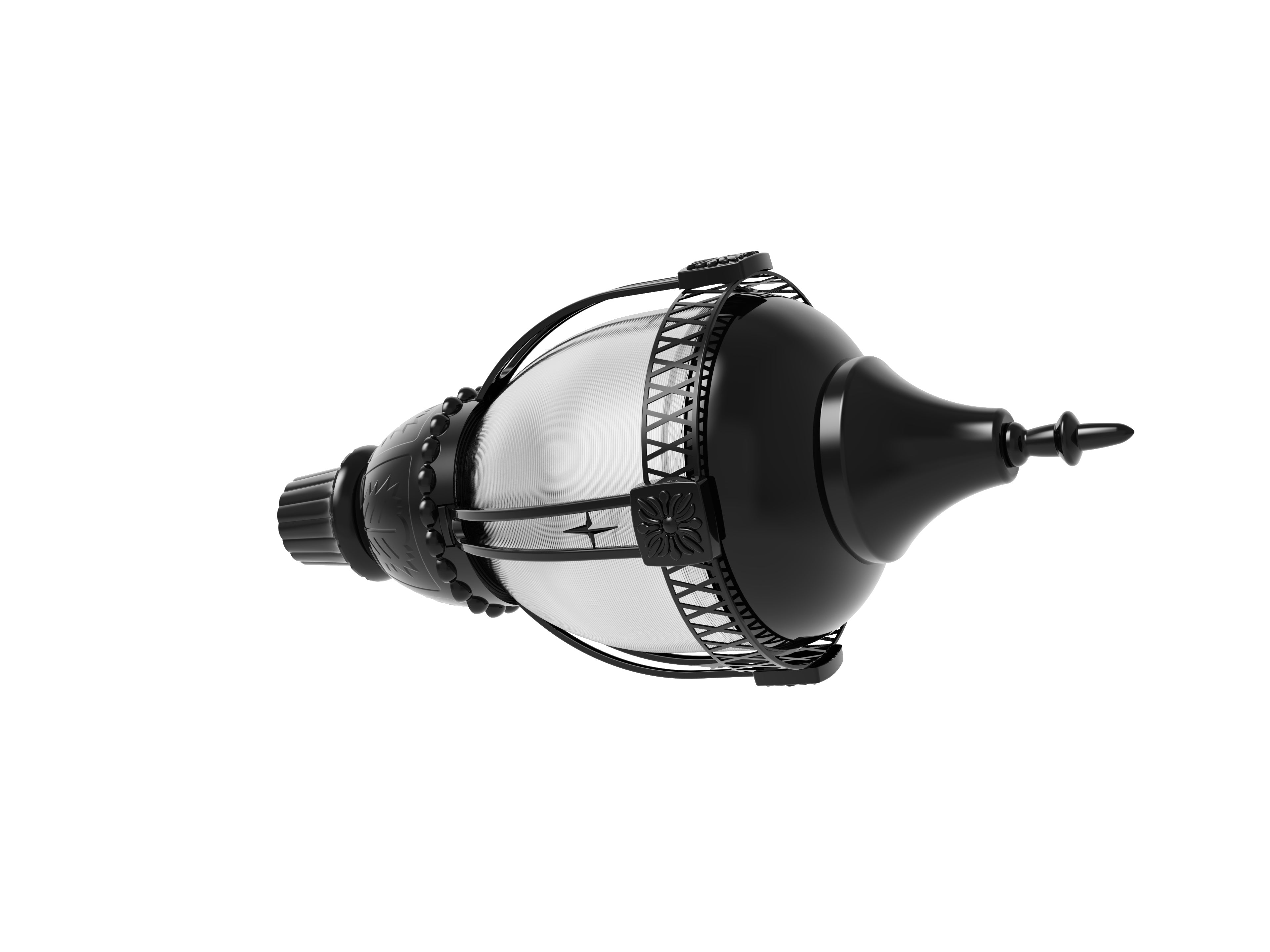

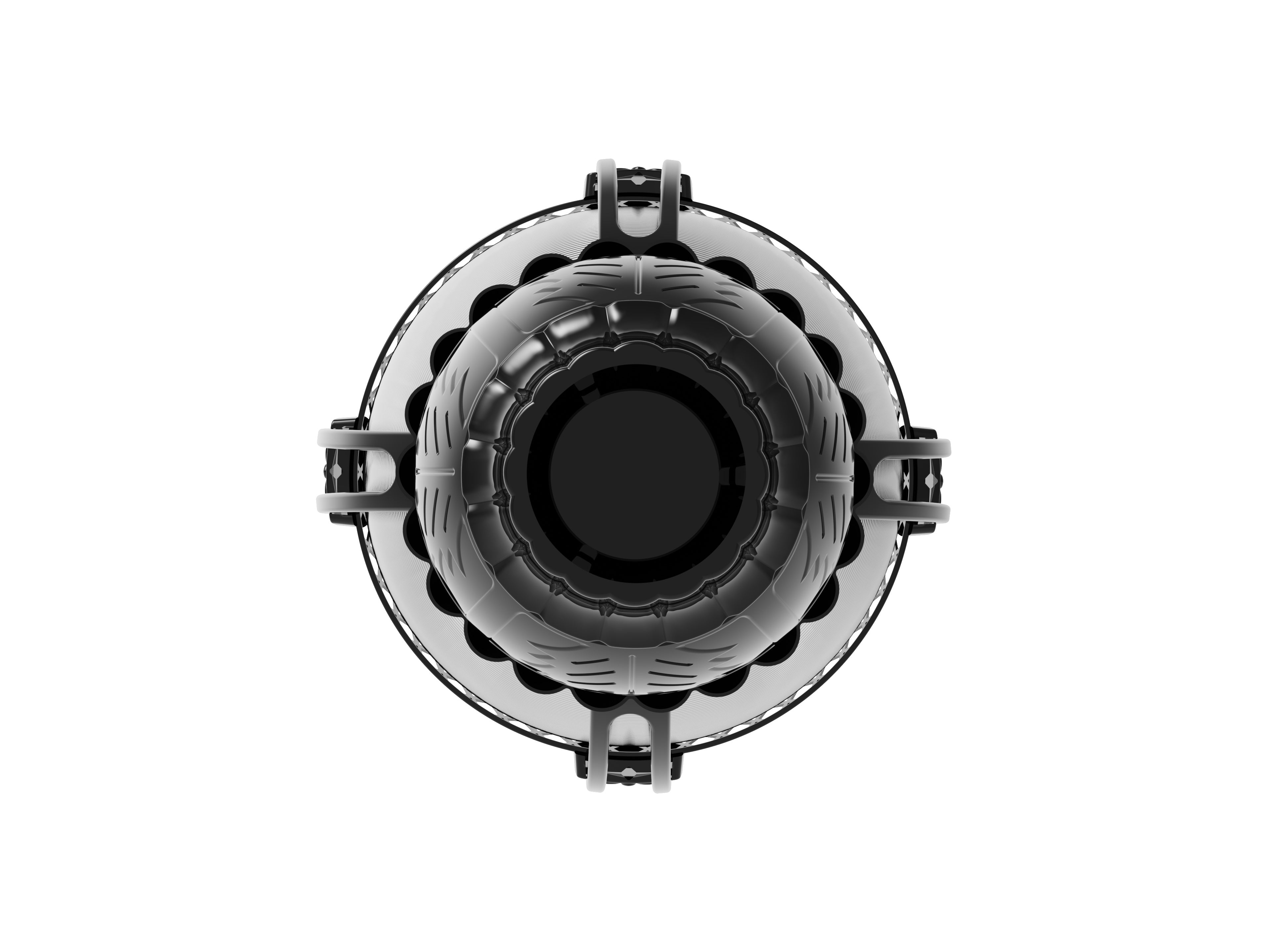

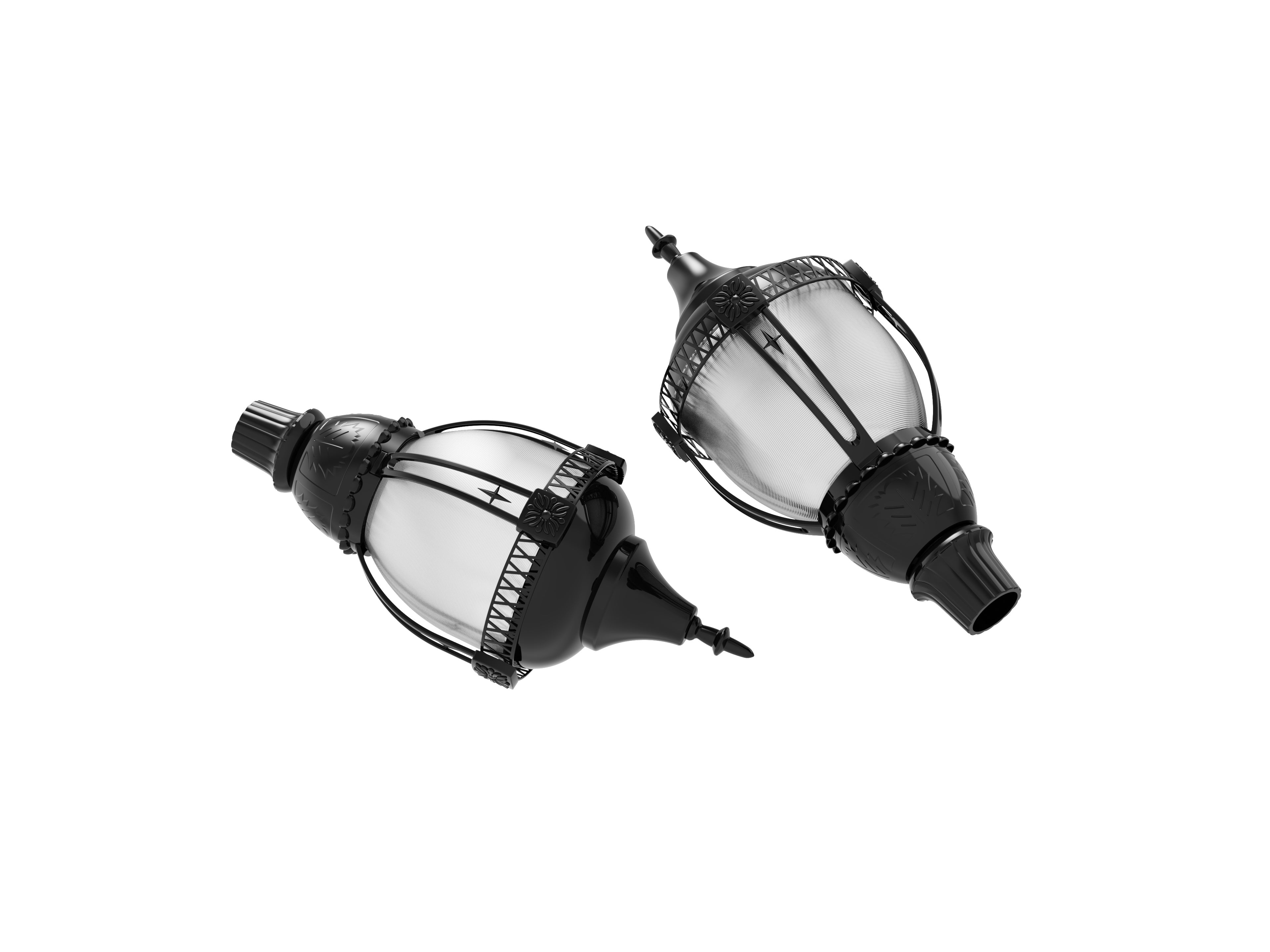

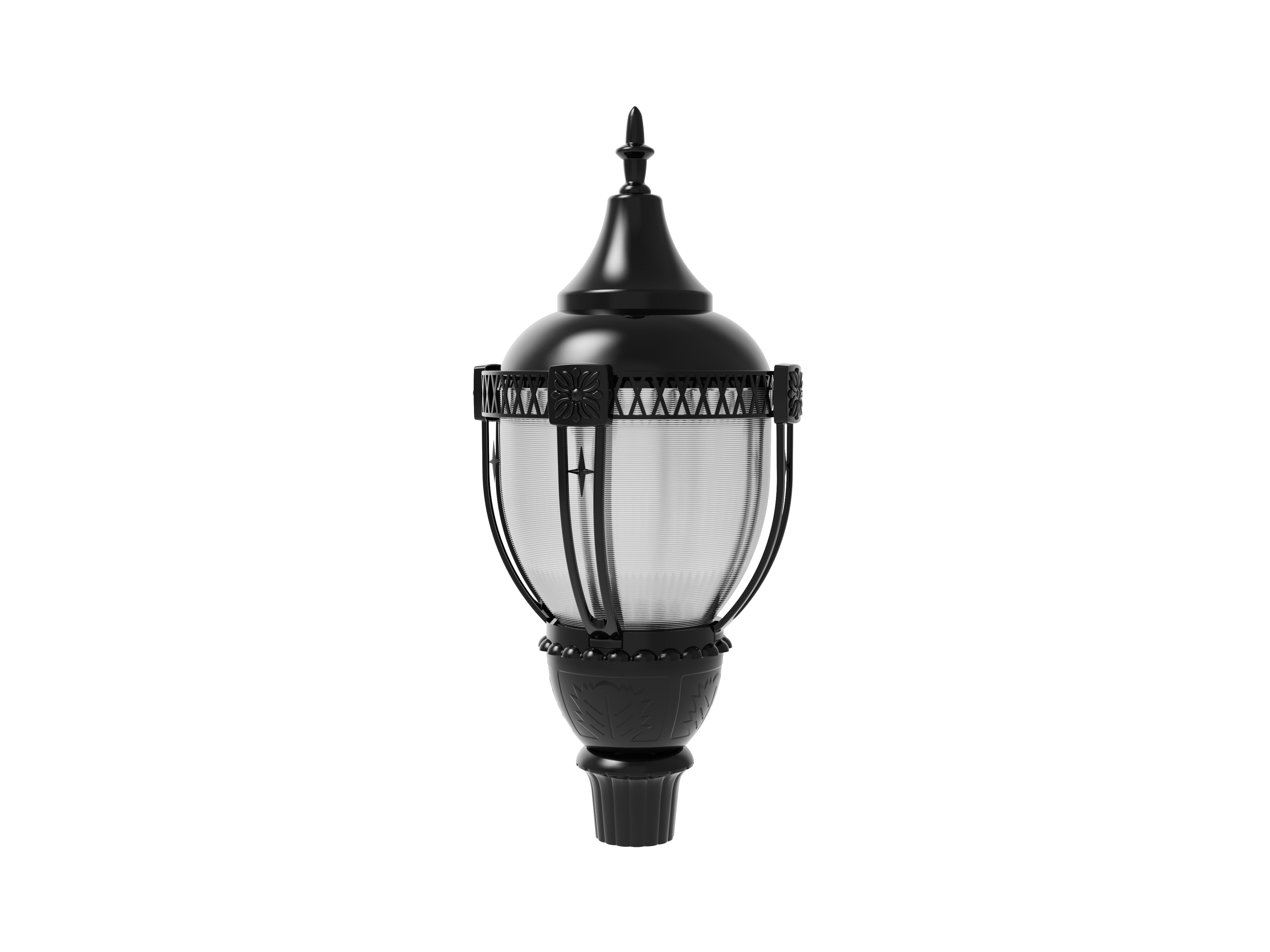

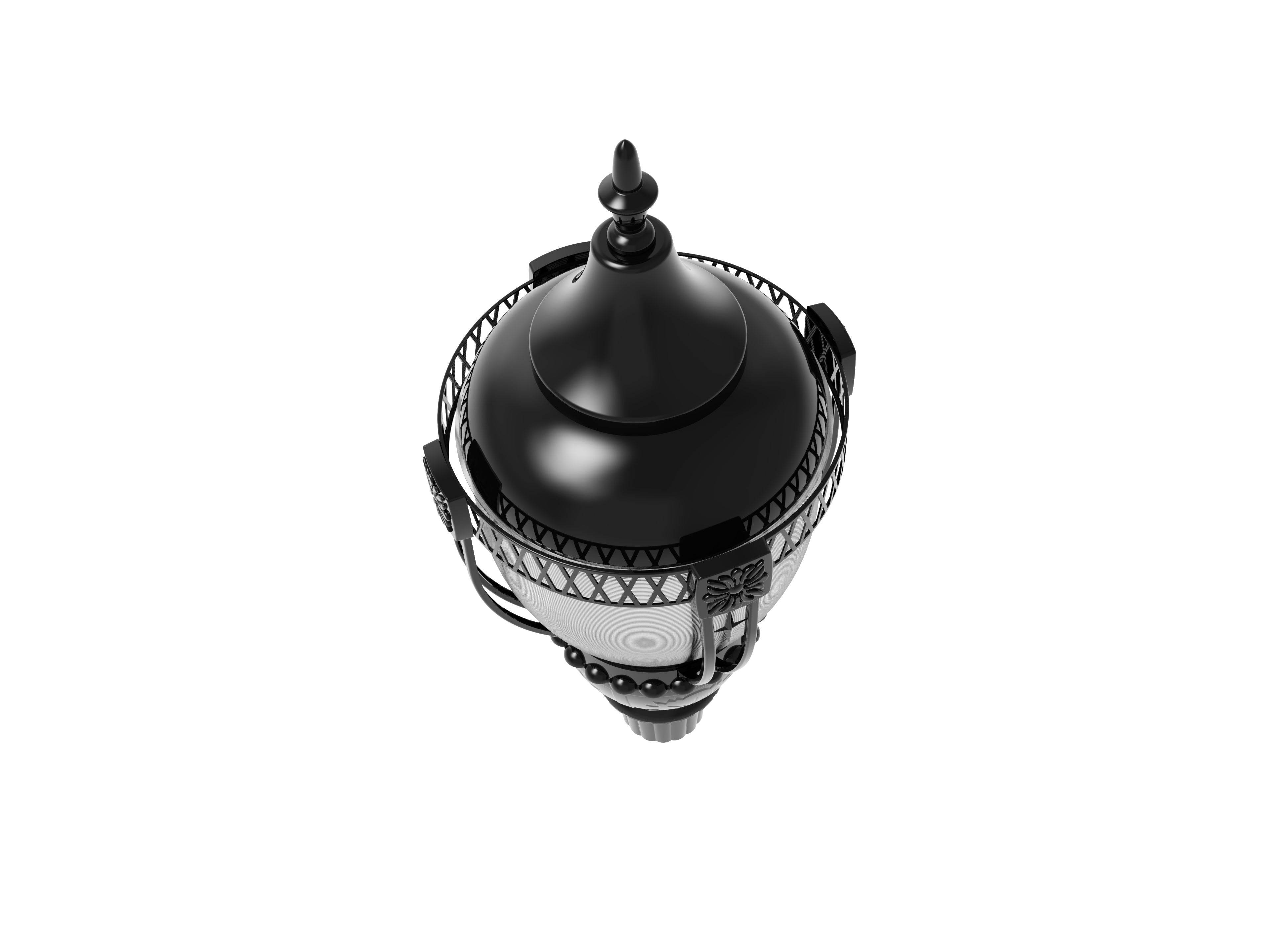

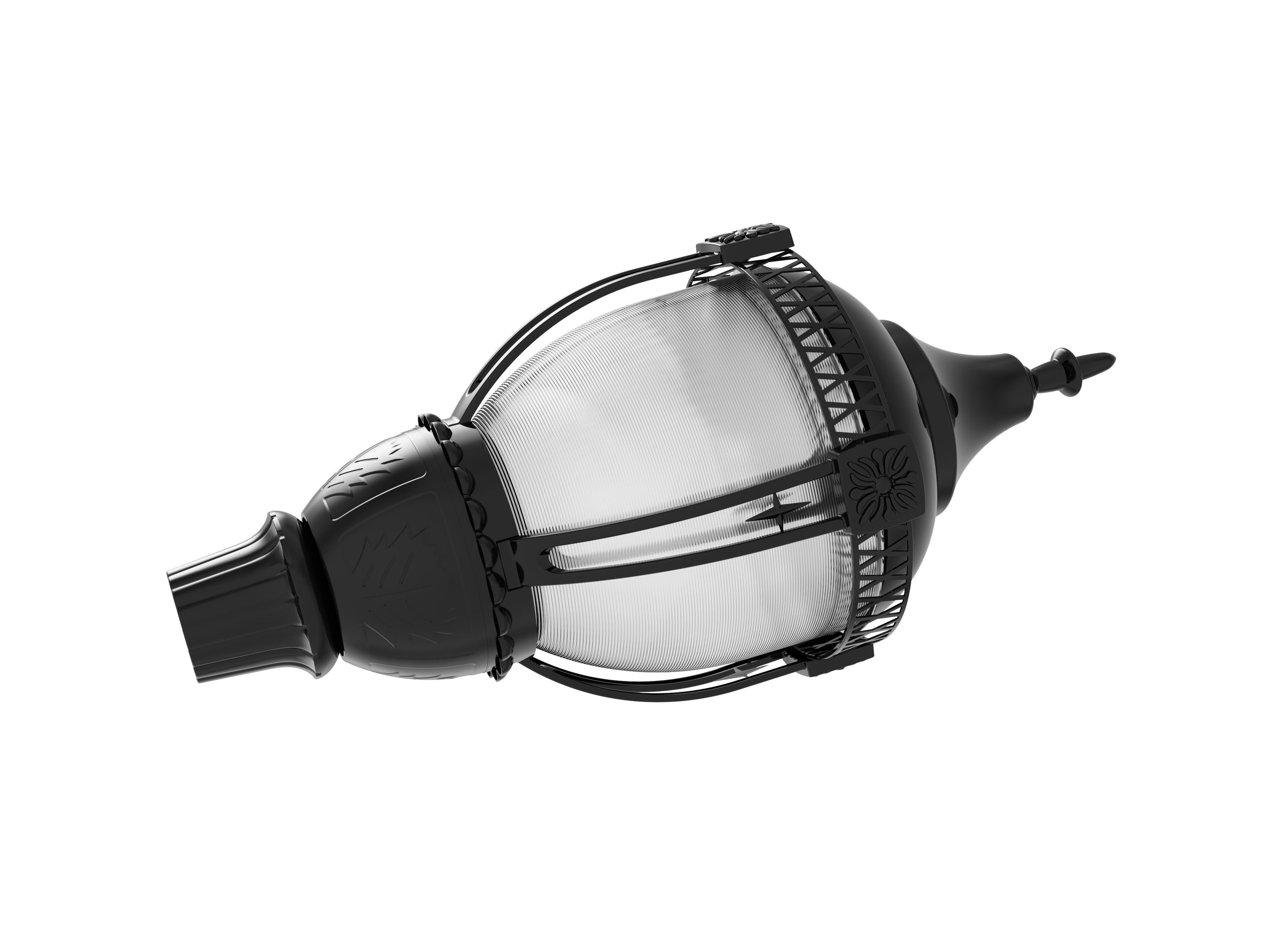

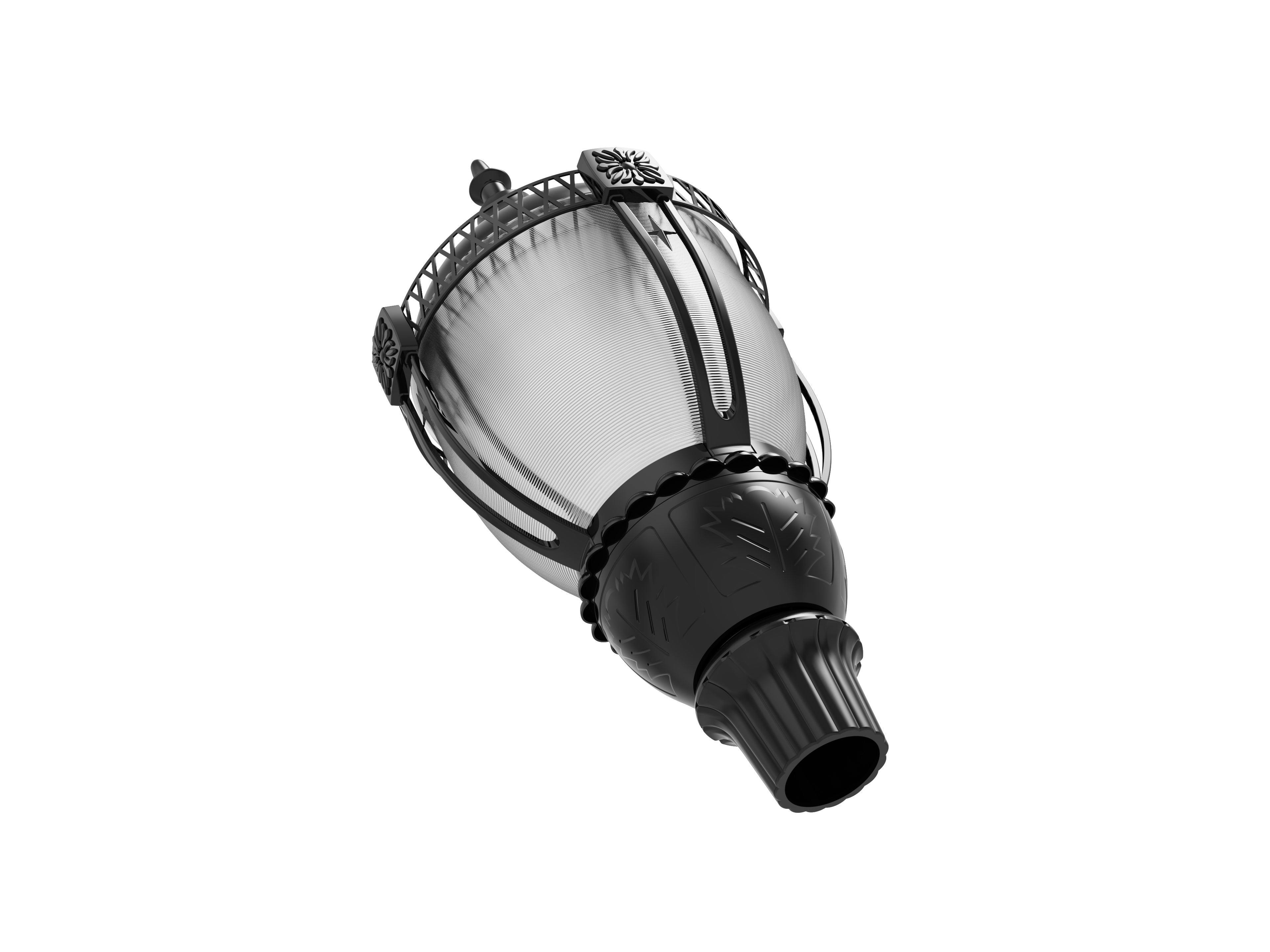

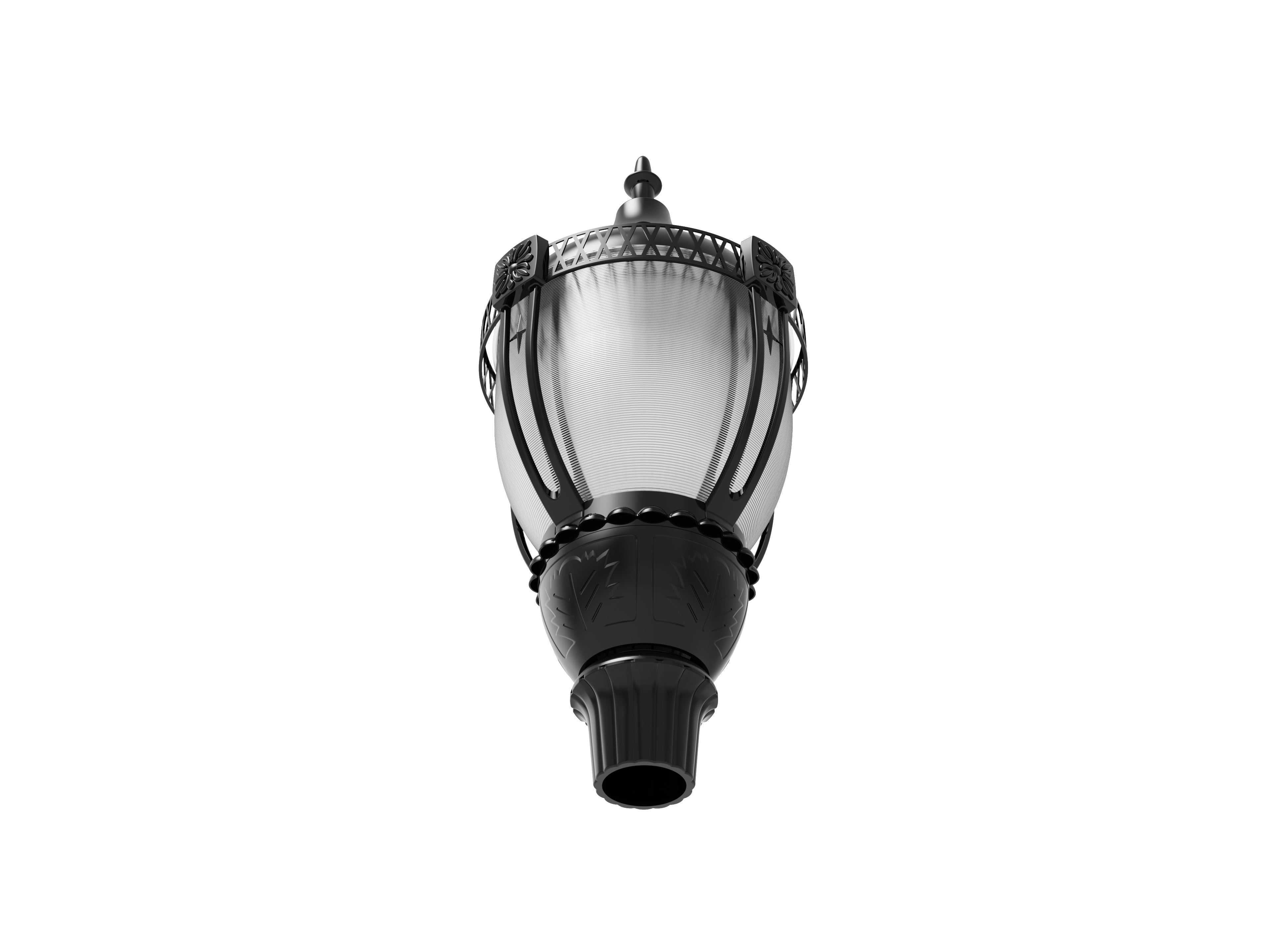

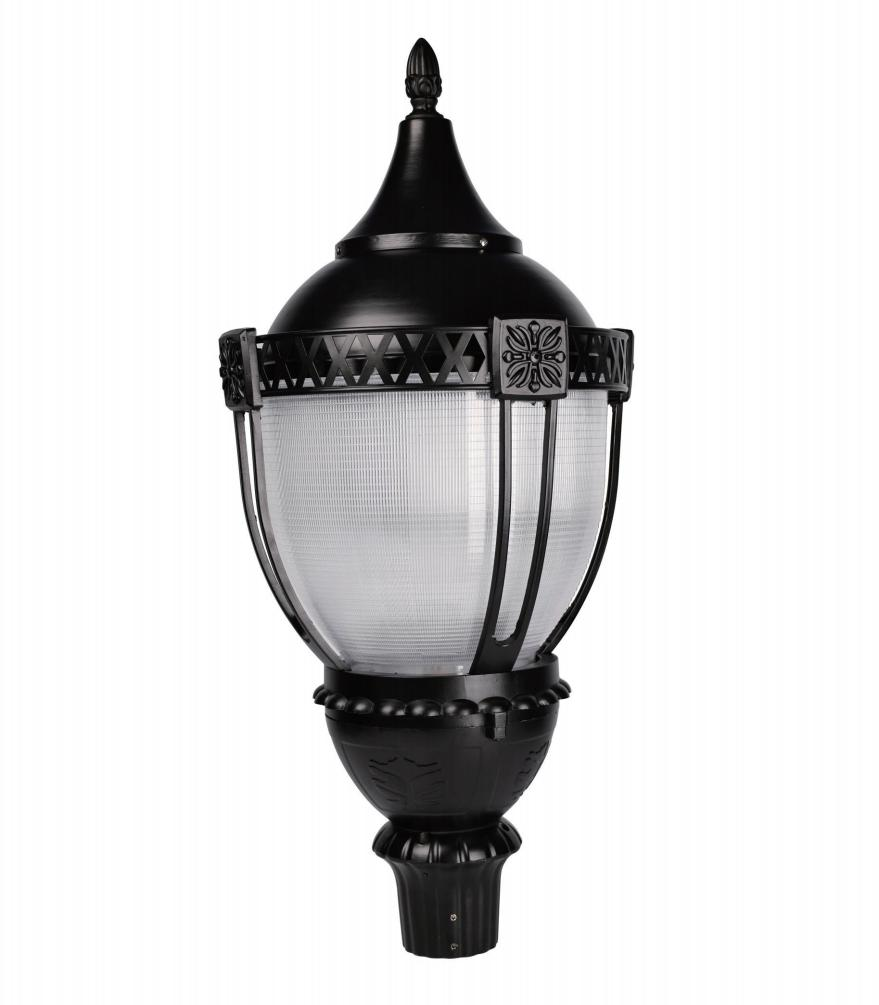

Acorn LED Post Top Light – 60W/80W/100W Selectable, Dimmable, DLC Premium 5.1 Compliant
Tax excluded. Shipping calculated at checkout
- Fast Shipping 3-7 Days.
- Free Shipping & Returns: On all orders
- 30-Day Money Back Guarantee.
The Acorn LED Post Top Light combines timeless aesthetic appeal with cutting-edge performance. This patented luminaire features a modern low-profile design and advanced optical technology for uniform, glare-free illumination. It meets DLC Premium 5.1 requirements, making it an ideal energy-efficient solution for a wide range of outdoor applications.
With selectable wattages (up to 100W) and color temperatures (3000K/4000K/5000K), the PT03 offers flexibility to suit varying project needs while reducing inventory complexity. Its robust construction, IP65 rating, and optional sensors ensure reliable performance in diverse environments.
Perfect for parking lots, corporate parks, retail spaces, pathways, municipalities, and general area lighting.
Key Features:
- Patented acorn-style design with utility-grade durability
- Optically engineered PC cover for uniform light distribution, no dark spots
- DLC Premium 5.1 compliant
- UV-resistant and high-light-transmission PC lampshade
- Selectable wattage and CCT via dip switch
- IP65 rated – fully waterproof and dustproof
- Compatible with low-voltage sensors (PIR, occupancy, Bluetooth, photocell)
- 0–10V dimming and 12V AUX power support
- Standard respirator for extended lifespan
- Easy installation with traditional junction box compatibility
- Included photocell
Technical Specifications:
- Wattage: 60W, 80W/60W/40W, or 100W/80W/60W (selectable)
- Efficacy: 140 LPW
- CCT: 3000K / 4000K / 5000K (selectable)
- CRI: Ra > 70
- Input Voltage: AC 120–277V (other voltages available)
- Distribution: Type V
- Power Factor: > 0.9
- Driver Efficiency: > 90%
- Operating Temperature: -40°F to 113°F
- Protection Level: Wet Location
- Lifespan: >50,000 hours
- Warranty: 5-year limited
Applications:

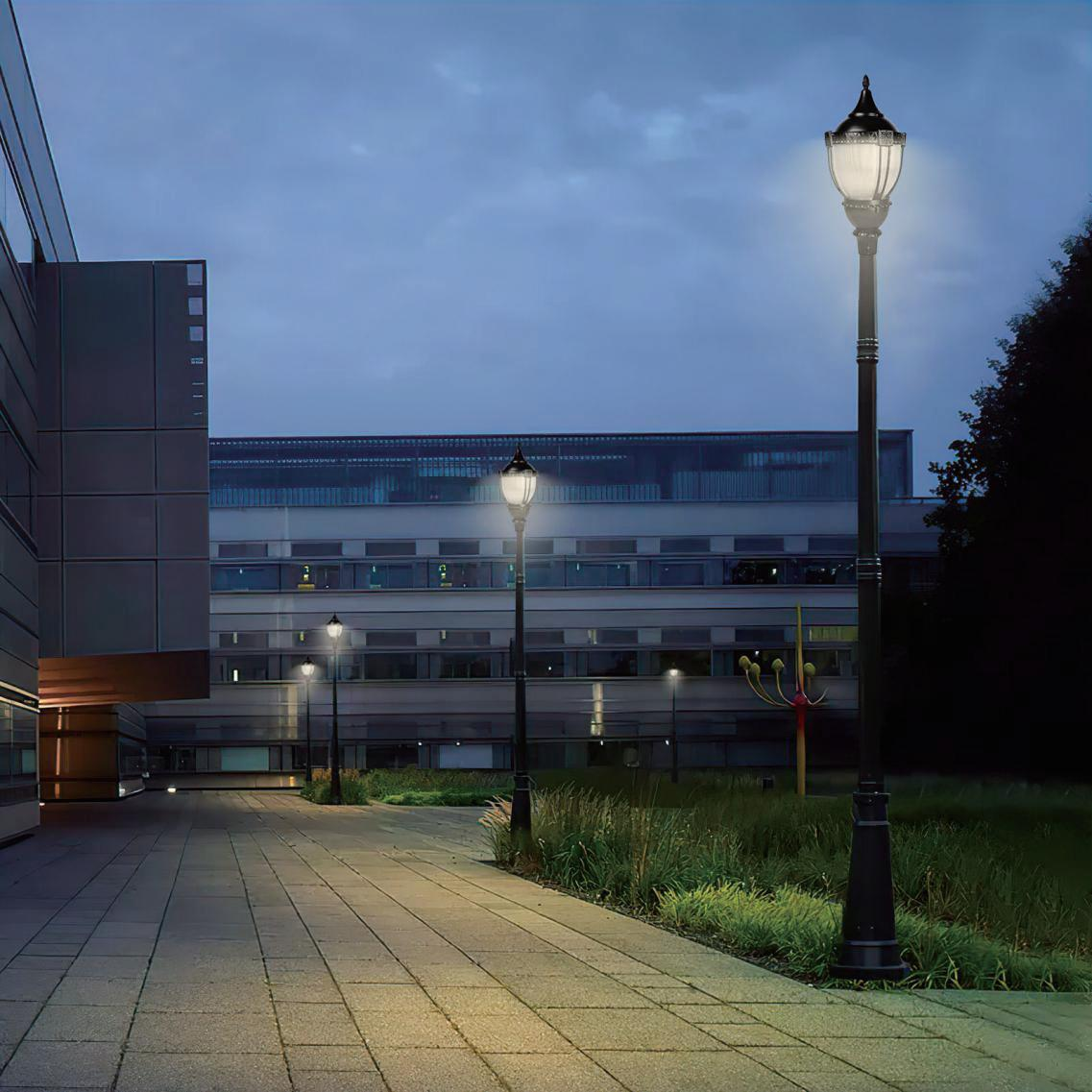

Ideal for outdoor lighting in parking lots, corporate campuses, retail settings, pathways, municipal areas, and public spaces.
Safety Notes:
- Use only within specified voltage ranges
- Install with power disconnected
- Ensure waterproof and secure electrical connections
- Installation must be performed by a qualified electrician
